The Frame With No Name


Another new frame from the dudes out back, shop bros are calling it the PowerCoque (pronounced PowerCock) and the SNL (Slow N’ Low), Mike calls it the Brigantine, and I’ve been calling it the Razor, Sling Blade or Keel Haul. Whatever the heck it’s named, it came out super duper radabonzical.

Weight: 4 lbs 4oz.

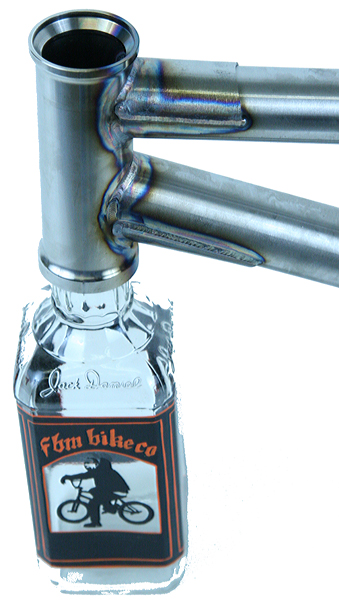

Headtube: 1-1/8″ Integrated without Gyro Mounting holes

Headtube Angle: 75 degrees

Top Tube Length: 20.75 inches

Top Tube OD and Material: 1-1/4″OD Supertherm

Top Tube Gusset: 3D Laser Cut 4130

Down Tube OD and Material: 1-3/8″OD Supertherm

Down Tube Gusset: 3D Laser Cut 4130

Bottom Bracket Type: Mid

Bottom Bracket Height: 11-7/8 inches

Seat Tube: Externally Butted 4130 Chromoly

Seat Tube Angle: 71 degrees

Stand Over Height: 7-3/4 inches

Clamp Style: Integrated Clamp

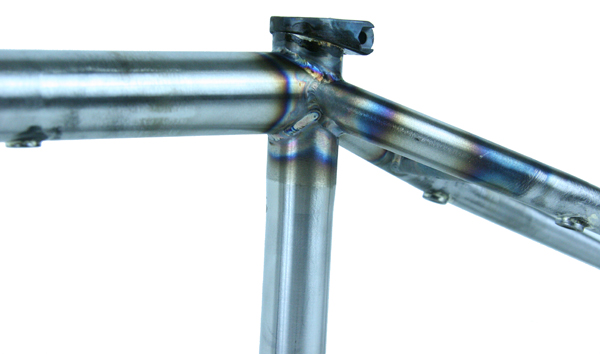

Top Tube / Seat Stay Junction: Overlapping

Seat Stay Material: 3/4″OD tapered to 1/2OD x 0.035″wall 4130 Chromoly

Seat Stay Bridge: 5/8OD Straight Tube

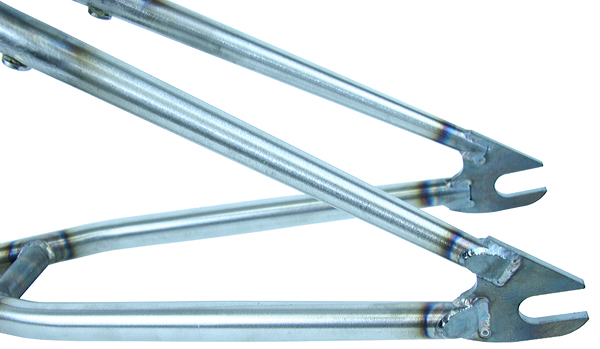

Chain Stay Length: 13.375 inches

Chain Stay Style: Double Bend

Chain Stay Material: 3/4″OD tapered to 5/8″OD x 0.049″wall 4130 Chromoly

Chain Stay Bridge Type: 5/8OD Straight Tube

Capped Stays: Yes

Dropout Type: Howler V2

Brake Mount Type: 990 Removable

Brake Mount Position: Seat Stay

Cable Guide Type: None

Cable Stop: Removable

Brazed integrated clamp and removable brake hardward. Down tube and top tube gussets. Lean machine. Guillotine in the flesh. MSRP $280!!
