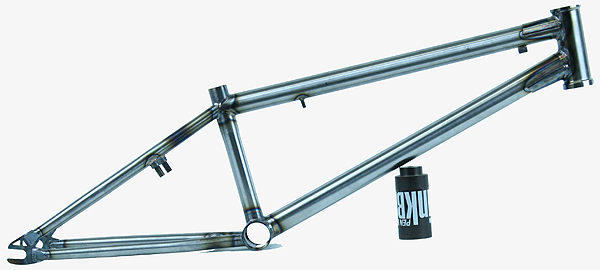

Howler ST2 Prototype Spec Info:

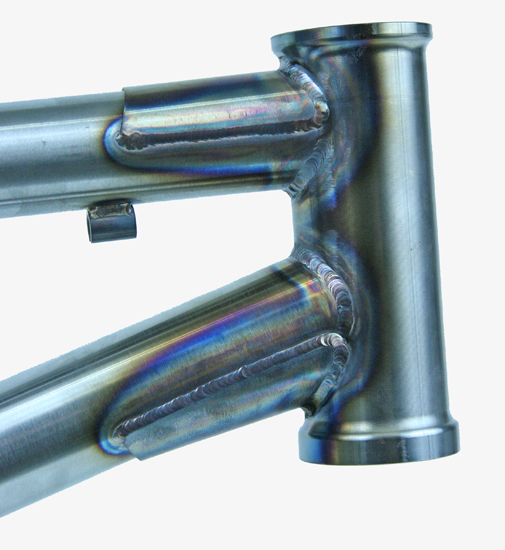

* Integrated Head tube no gyro mounts
* 1-1/4 Supertherm Top Tube
* 4130 3D laser cut Top Tube Gusset
* 1-3/8 Supertherm Down Tube
* 4130 3D laser cut Down Tube Gusset
* Externally machined Seat Tube
* Mid BB
* 3/4 taper to 5/8 OD 0.035 wall 4130 Seat Stays
* Howler Flat Plate Seat Stay Bridge
* 3/4 taper to 5/8 OD 0.049 wall 4130 Chain Stays
* 5/8OD x 0.035wall straight chain stay bridge

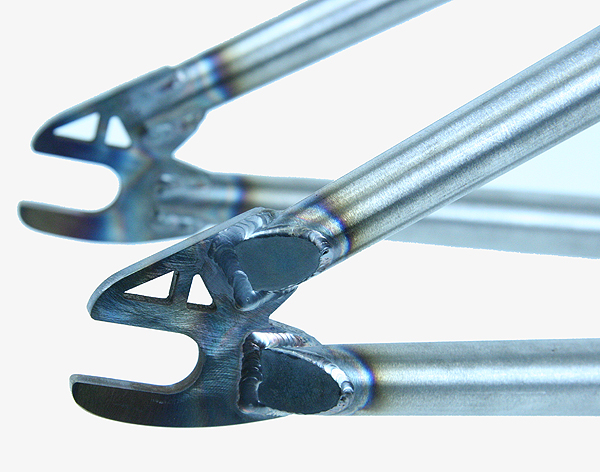

* 3/16 thick heat treated 4130 dropouts
* WEIGHT: 4.3lbs (before paint)
* Geometry:
– Top Tubes – 20.5, 20.75, 21
– Rear End Length – 13-5/8
– BB Height 11-7/8
– HT Angle – 75
– ST Angle 71
– Standover Height 7-3/4
When we get the parts in the second prototype will have these features:
* Removable Cable Stop
* Integrated Seat Post Clamp
* Removable Seat Stay 990 Mounts
